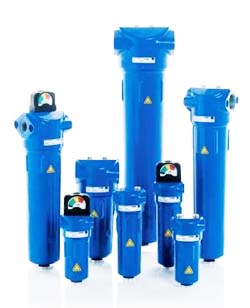

These are ultrafilter, Micro Filter, which remove oil, water and dust particles that are mixed with condensate. If these impurities are not removed, it is highly harmful for the machinery and equipments in the plant as it forms amalgam, which is a thick viscous matter and gets struck up in airlines and orifices in the pneumatic system and instrumentation.

The efficient filtration of compressed air is complex problem. And the new series from Advance Global Industries offers the right solution by providing not only higher efficiency but also higher capacity at a lower price and a choice of export quality pressure die – cast housings with the new generation of Advance Global Industries elements.

Major impurities in Compressed Air and Corresponding elements / system offered
1) Particulate Contamination: - Atmospheric dust (140 million particles / m3), Worn out compressor Parts, Pipe Scale and Rust.
Element: - Sintered Bronze, Sintered Polyethylene, Sintered Stainless Steel elements. (These are of 1-25 micron having 100% efficiency and withstand temperature upto 400 deg. C).

2) Liquid Contamination: - Moisture in atmospheric air, Compressor oil
Element: - Borosilicate glass fibre filter of rating 0.01 micron having efficiency upto 99.99999% can allow the residual oil at outlet 0.003 PPM. For higher temperature upto 200 OC we provide special media like Aramid etc. with SS304 Core.

3) Vapour Contamination (oil): - Acid Fumes, Hydrocarbon Aerosols which are still present in the air.
Element: -Sintered Activated Carbon Filter

4) Natural Contaminations (Bacteria and viruses): - Removal of these are crucial for pharmaceutical and food industries.
Element: - Sterile Reversible flow Borosilicate glass fibre filter of 0.01 micron.

5) Vapour Contamination (water): -
System: - Heatless and Refrigerated type Air Dryer.
