Filter Media

We are paramount in providing a wide range of Filter Media to the valuable patrons including Freudenberg reputed brand name of Filter Media . Our products are manufactured by making use of the optimum quality raw material, which is sourced from the most trusted vendors of the market. These products are used for air-oil separation in compressor applications, tooth paste powder , dust collector , Food industry , seawage & waste water , storm water , gas, Air Conditioning Filter etc. In addition, these are also used in layers for coalescing application.

Features:

  • High efficiency low pressure drop
  • Fire Retardant
  • Excellent finishing

Types of Filter Media

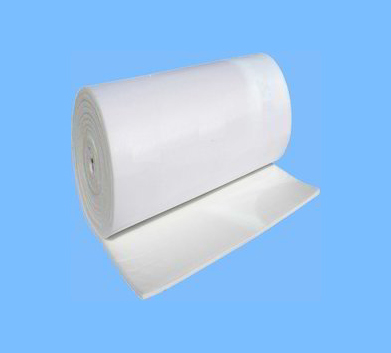

A) Cellulose Filter Pad :
  • Advance Global Industries offers broad range of Non-Woven filter media in width up to 2100mm
  • Non-Woven filter medias are also known as filter paper and mainly useful for coolant filtration in metal working industries for several machining, rolling, grinding, honing, drawing operations, DM water chips cutting plant - Yarn industries etc.
  • Non-Woven filter papers are mainly used in gravity band, compact band, Vacuum band, Hydrostatic head filtration systems
  • Non-Woven filter media offers effective filtration from 50 - 1 micron
  • Non-Woven filter pads are also used in sparkler filters
  • Non-Woven filter medias are available in different GSM as under

B) Woven Filter Media:
  • Advance Global Industries offered a wide range of woven filter media for filtration of liquids, solid-liquid separation and powder material classification
  • Woven filter media is available in Polyester, Polypropylene, Nylon and acrylic fibers
  • Woven filter media are available in two varieties
  • Multifilament Woven filter media: Multifilament Woven filter medias are mainly used in Filter press, Fluidized bed drier, Disc filters, Rotary drum filter, Vacuum drum filters, Pan filters, Centrifuges and Decanters
  • Monofilament Woven filter media: Monofilament Woven filter medias are mainly used in De-dusting filters, classifiers and flour milling shifterss

C) PTFE Coated Filter
Uses of PTFE Coated fabric
  • Advance Global Industries is the distinguished name in the field of manufacturing, supplying & exporting premium range of PTFE Coated Fabric. Constructed with woven fiberglass cloth specifically coated with PTFE resin, the standard fabric has the exemplifying design.PTFE ( Polytetrafluoro Ethylene) is the technical name of the material.
  • The superior coating has the needed strength along with the dimensional stability of the fiberglass. Moreover, it offers easy release and has heat resistance of PTFE. It features comparatively heavier coating of PTFE.
  • The advanced PTFE coated fabric is available in a wide variety of designs, sizes and models. It has been carved keeping in mind the specific usability in many industries. Besides, it is customized as well to meet each specification.
  • We have a dedicated team of most experienced professionals who make sure the products are tested at every stage in order to have flawless quality. The standard fabric is used in many applications such as, composite mold release, polymer processing, food dehydration, release sheets, separation materials etc.
  • In addition to being slippery, the material also brings a number of other features to the table, offering high temperature resistance, little reaction to most chemicals, and reduced stress cracking and corrosion. These features make PTFE perfect for numerous applications, including:
  • Chemical and steel industries – Hoses and other machine parts commonly handle some highly corrosive substances that sometimes are transferred at extremely high temperatures. PTFE industrial coating is one of the best materials to handle this type of use because it addresses all of the problems that are otherwise caused by working with chemicals or steel. Every type of hose will deteriorate over time, but those that are made of PTFE industrial coating will do so much more slowly than those made of other materials because of the many features of the material.

Advantage
  • Excellent adhesive resistant and release characteristics
  • Heat resistant- operational temp from -87ºF (-60ºC) to +522ºF (+260ºC)
  • Chemical resistant
  • Mechanical property
  • Unique fine electric insulation property
  • Long lasting life etc.

filter bags

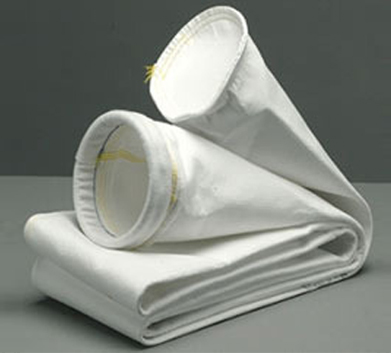

Filter Bags


Product Details: -
Bag Type: - Snap Ring, Pocket Filter, Ring Type, Collar Type
Fabric Material: - Non-Woven Polyster , Polypropylene , Nylon, PTFE , Teflon Coated Polypropylene , Nomex, Glass Fibre
Usage: - Air Filter, Dust Filter, Liquid Filter

We fabricate high quality dust collector convectional filter bags that are made from superior quality raw material such as base fiber. These dust collector filter bags are precisely fabricated under the strict quality control inspections right from the stage of procurement of raw material to the finished product. The dust collector filter bags are stitched according to clients’ requirement with the state -of-the-art stitching machines. These conventional dust filter bags are widely used in various industries including cement, steel, incinerators, boilers, power stations, salt processing, ceramic and many others.

Benefits: -

  • 1) Bag Filters Custom stitched in house on imported juki machines to suit industry needs.
  • 2) Our bag filters meet the most stringent test for stitching workmanship w.r.t bag dimension & quality of snap / band collar with fitments.
  • 3) Filtration solution to solve problems such as blinding of filter bags, emissions, temperature, moisture and hydrolysis, high differential pressure and inadequate air flow by proper selection of non-woven media.
 

dust collector filter bag
