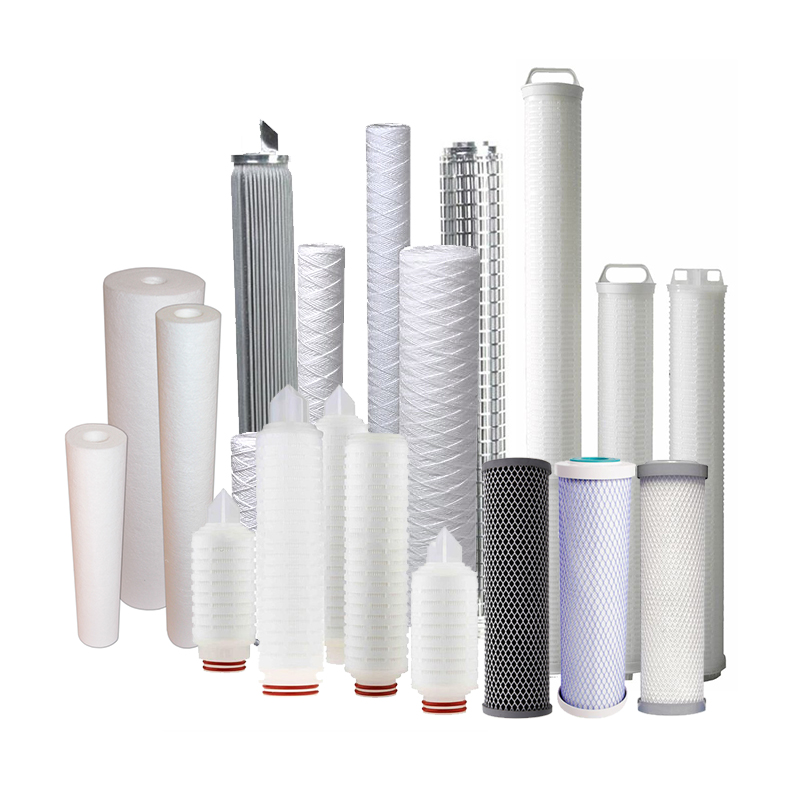

Liquid Filter Cartridges
A Cartridge filter is a piece of tabular filtration equipment that can be used across various industries for an array of filtration requirements. A Cartridge is encased within housing or a casing and used to remove unwanted particles, pollutants and chemicals from liquids. These are that part of a filtration system that are removable from the main body housing of the system for disposal and replacement or for cleaning and reuse. A single housing contains one single or multiple cartridges. The cartridge is exposed to water, liquid or solvent that needs filtration as it flows inside the housing and passes through the elements.
Type of Element Wound, Spun, Pleated Media, Sintered, Resin Bonded, Pleated Mesh, Coalescing
MOC of Element SS304/316/316 L, Polypropylene, Polyester, Cotton, Glass Fibre, Rayon, Nylon, Membrane, Felt, Carbon, Resin Impregnated Paper etc.
Flow Rate 10 LPM to 15,000 LPM
Working Pressure Range 2 - 40 BAR
Working Temperature Range Upto 200 Deg. C
Core PP, SS 304, SS 316, GI, MS Painted
Type of Connection BSP, NPT, Flanged/#150, Table D
Micron Rating Label 500 to 0.01 Micron
Core PP, SS 304, SS 316, GI, MS Painted
Element Standard Size (Length) 4”,6”, 8”, 10”, 20”, 30”, 40”, 50”, 60”, 72”
End Cap (Top & Bottom) SS304/316, GI, MS, Al., PVC
Gasket / O-Ring Silicon, EPDM, Viton, Teflon
Outer Dia 2.5”, 4”, 4.5”, 6”
Media Support PP, SS304/316, GI, Al.
These Cartridge provide excellent filtration removal of solid, rigid contaminants, coalesced liquids down to 0.3 micron in 2 stages. These cartridges are specially designed for Gas processing such as natural gas, CNG etc. We manufacture interchangeable filter element equivalent to PECO, Multitex, Parker, Pall, Hydex, Coperian Ideal etc. with equivalent performance.
Removes Contaminants such as:- Asphaltenes, Coal Fines, Dirt, Iron Sulphides, Molecular Sieve Dust, Pipe Scale, Salts, Sand, Wear Metals
Coalesces Aerosol Liquid Droplets such as Amine, Condensate, Glycol, Lubricating Oils, Water, Low Surface Tension Fluid
Filter Housing is a part of filter assembly. A Filter Housing is a casing around a filter cartridge. Filter Housings came in a variety of Sizes and styles used for a varietyof application in liquid and gas filtration. These are in wide range both in standard and custom designed. These are also custom designed considering the operating parameters. V1z, flow rate, pressure, operating temperature, piping orientation, application etc. Advance Global Industries’ housings are leak proof and withstand pressure and atmospheric adversities.
Metallic Housing These are available in single cartridge design as well as multi cartridge design to handle large flow rates. Metallic Housings are offered in SS304, SS316, SS316L etc.
Polyproplene Filter Housing These are molded filter housing. The top lid has threaded inlet/outlet connections. The housing can incorporate a single filter cartridge of either 5”, 10”, 20” or 30” Length in standard or Jumbo housing having double open End (DOE) connection. They can be used for operating pressure upto7 Kg/ cm2 and temperature upto 80 deg. C.
Transparent Filter Housing These are transparent molded filter housing. These are ideal for the point of use and point of entry, perfect for water treatment in technical and industrial application. Available in standard and Jumbo sizes of 5”, 10”, 20” with thread sizes of ¼”, ½”, ¾” and 1”. Main advantage is that anyone can observe condition of cartridge from outside.
Advance Global Industries offer in providing Industrial Liquid Filters to our value esteemed clients. These are manufactured using the premium quality of materials under the guidance of experienced professionals. These are widely demanded for efficiency, robustness and dependability. We maintain the international industrial standards.
Housings

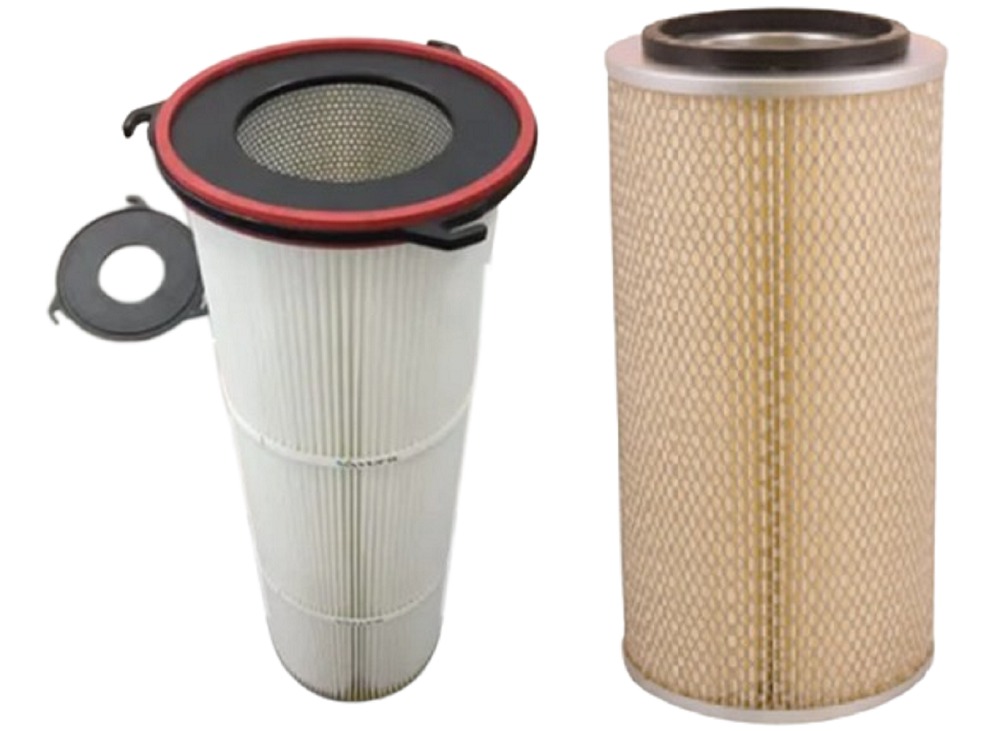

Advance 100% Polyester spun bond Filter Cartridge are suitable for dust collection in Air, Gas and fluid filtration upto 0.1 Micron. Cleanable and reusable in most applications. These are ideal choice for applications where exceptional dust release, excellent abrasion resistance and high strength are required.
Dia (mm) -> Length (mm) Pleat Depth (mm) No. of Pleats Filter Area (sq. mtrs.)
150 --> 500-2000 --> 16 / 28 --> 40 – 70 --> 0.5 – 7.84
225 --> 500-2000 --> 16 / 28 / 48 --> 70 – 80 --> 112 – 15.50
325 --> 500-2000 --> 28 / 48 --> 90 – 110 --> 2.52 – 30
MOC – GI, SS304, SS316
Note - We can provide you customize size and Filtration area as per your requirements.
Features & Benefits
100% polyester -> High strength media composition making it durable and long lasting
Open pleat Structure -> Excellent dust release making pulse cleaning more effective
Excellent dust cake releases even under moist, humid conditions -> Minimizes blinding increasing filter life
High burst strength and increased dimensional stability -> Can be used with moist air, oil contaminants, heat, chemicals or abrasive dusts
Excellent abrasion and good moisture resistance -> Extends the cartridge lifecycle for better return on investment
Good permeability -> Reduces energy consumption
No linting -> Eliminates contamination
Stainless steel components (optional) -> Enhances durability and is suitable for use in hygienic applications
Typical Bulk Materials Processed
