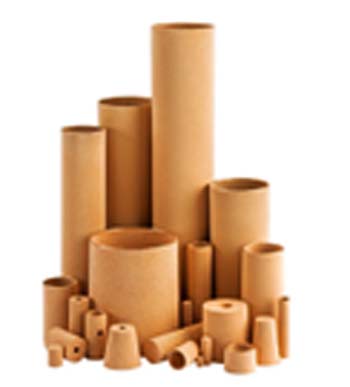

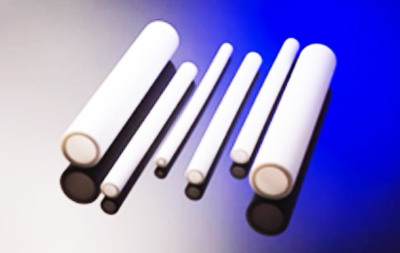

1) Sintered Air filter Candle

Sintering is a process by which particles join with each other and form a porous structure which allow any fluid, air or gas to pass through without disturbing its structure. These filters are normally omni directional interconnecting pores permeable structure and are placed in a filter support vessel/ housing. While filtering solid particles from fluid, it repels oil and water also when candle / cartridge is leakered with Silicon Resin – Non-Stick Surface. Activated Carbon bocks are best suited for adsorption of vapors / odor from compressed air / gases.

Material of Construction: -

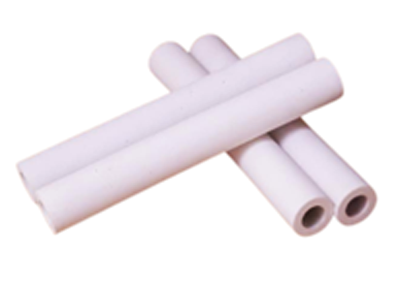

These candles are available in Polyproplene, Ceramic, Activated Carbon Block, Polyethylene, Bronze, SS Sintered.

Working Pressure: - Upto 250 Bar
Micron: - 0.1 – 120 micron
Efficiency: - 99.9999%
Differential Pressure: - Upto 100 PSI
Outer Dia Available: - 2 mm to 600 mm
Height: - 2 to 1000 mm
Wall Thickness: - 5 mm to 25 mm
Temperature Range: - Upto 200 Deg. C
Equipment Used: - Air Dryer Unit, Air Filter, Pneumatic Lines, Process Lines, Nitrogen Lines, Powder Coating Systems etc.
IPD: - 1 to 1.5 PSI at maximum flow
FPD: - 8 to 10 PSI at which element to cleaned
Standard Sizes: - 40 mm x 70 mm x 500 mm, 25 mm x 62 mm x 250 mm (We have dies of many other sizes).

We can manufacture different sizes of Porous Plastic Tubes, Disc and Fluidizing Sheets as per customer’s requirement and can provide Serrated (Groved) candles also.

Applications: - Compressed Air (For Air Dryer), N2 / CO2 / CI2 / Natural Gas / SO2 / NHz, Automobile, Battery Filtration and diffusion & e mission etc.

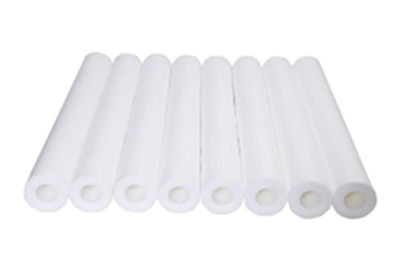

3) Polypropylene Filter Candle

---

Polypropylene Filter Candle is used for a large volume of liquid filtration. It’s a 100% polypropylene material. It is a superior chemical compatibility. This cartridge used to separate solid particles from water & other fluid. It’s also used for large volume of Flow.

Technical Specification: -

• Flow: - 50 – 5000 LPM
• MOC: - Polypropylene
• Size: - 10 inch – 40 inch
